Jeanneau Yachts 55

Construction
• Vacuum infused hull. Solid laminate in keel area. Barrier coat used to
guard against osmosis.
• Glued hull counter-mould
• Infused deck and contact countermould
• L-shaped cast iron keel
• Twin rudders with self-aligning roller bearings

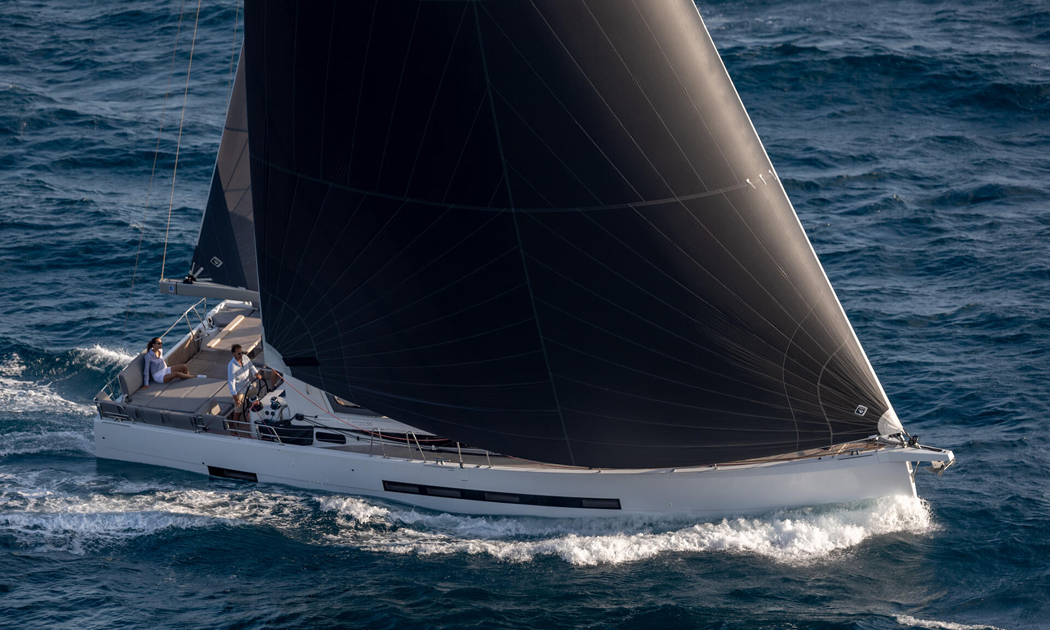

Sails
• Furling mainsail furling 68 m 2 / 732 sq ft
• Self-tacking jib 54 m 2 / 581 sq ft
Mast and rigging
• Deck-stepped anodised aluminium in-mast furling mast, fractional rig built by Sparcraft®
• 2 levels of swept back spreaders
• Anodised aluminium boom
• Manual genoa furler with furling line lead aft to coaming winch
• Rigid vang Sparcraft®
• Standing rigging made of discontinuous stainless steel cables
• Running rigging: halyards and sheets in Dyneema, additional lines and
sheets in polyester
Sailing features
• Harken® self-tacking jib track
• Mainsheet on arch
• Spinlock® line clutches
• Harken® turning blocks
• 2 Harken® 46.2 STA winches
• 2 Harken® manual winches

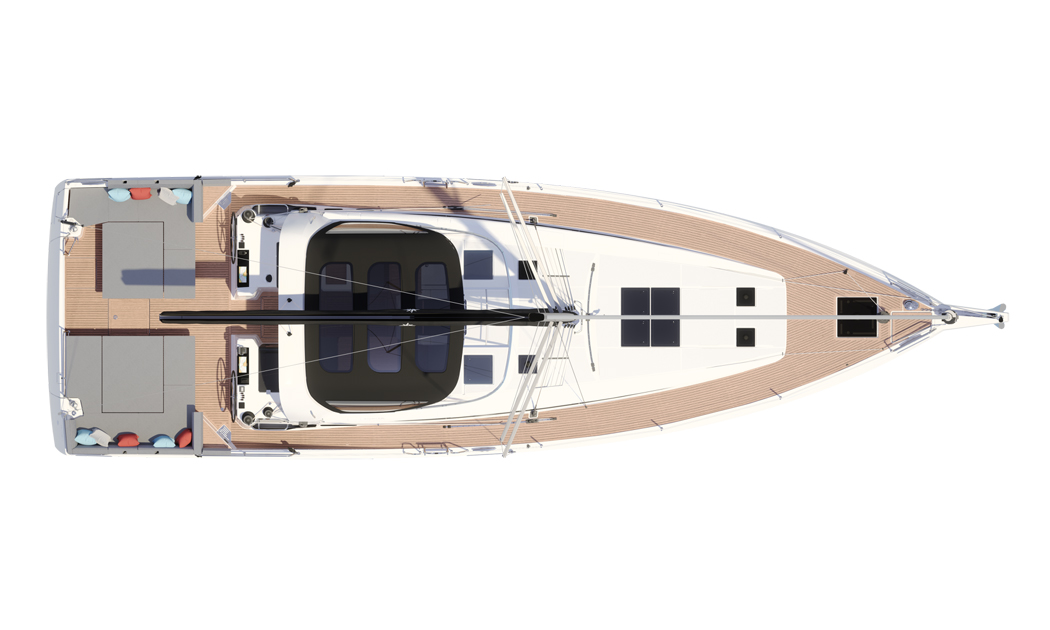

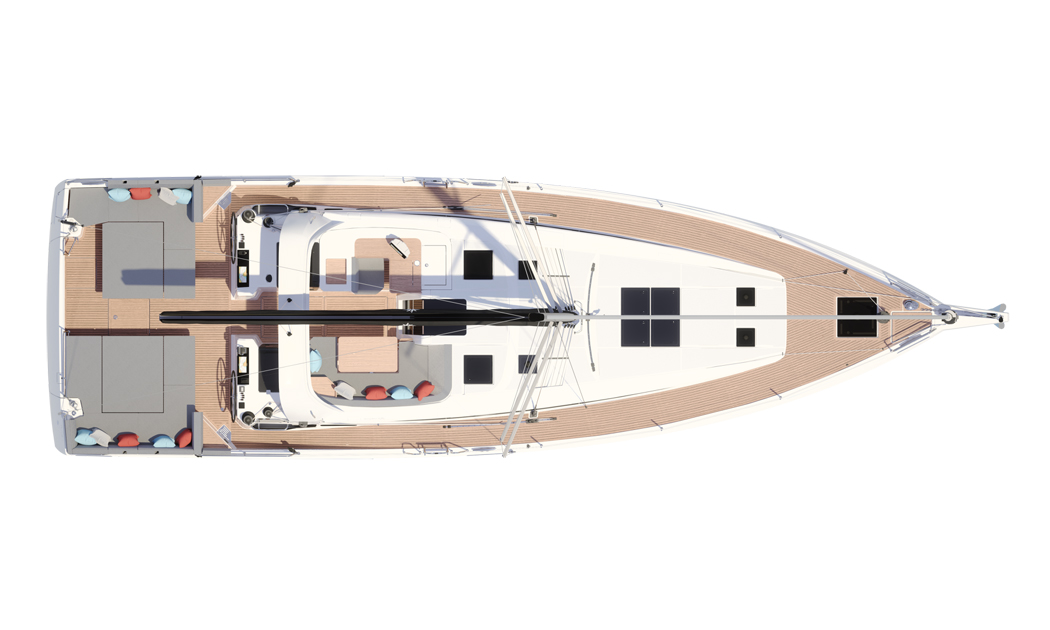

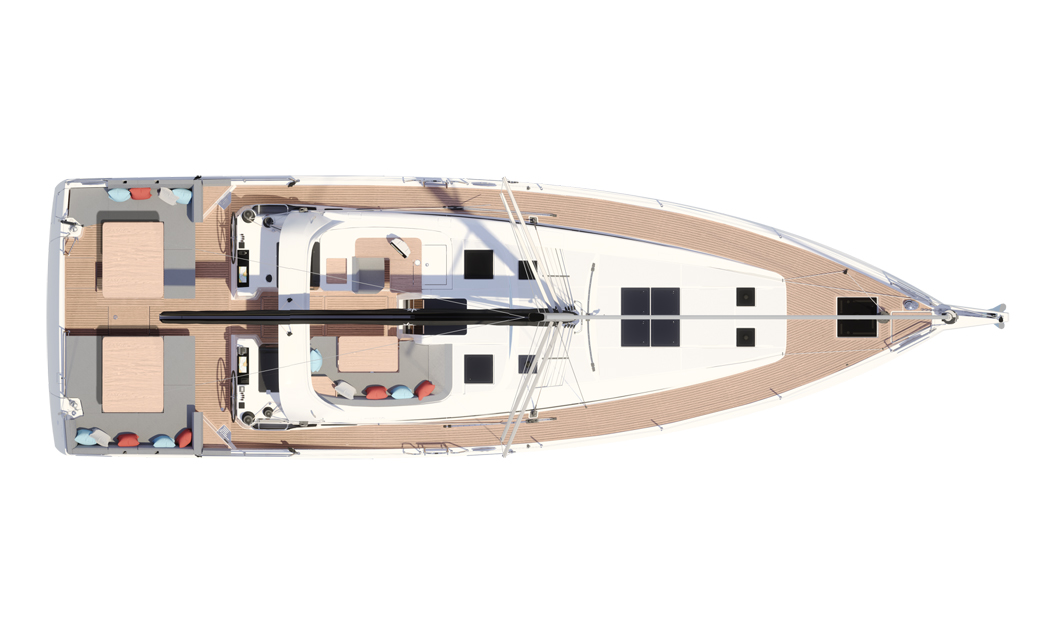

Deck
• Walk around decks
• Arch
• Split rigging: inboard shrouds for an easier access
• Bowsprit
• Open bow pulpit
• Double stainless steel lifelines
• Lifelines gates (2)
• Boarding ladders (2)
• Anchor windlass 2 000 W
• Double windlass control and counter
• Anchor locker with drain
• Mooring cleats (6)
• Flush deck hatches (11)
• Lateral coachroof windows

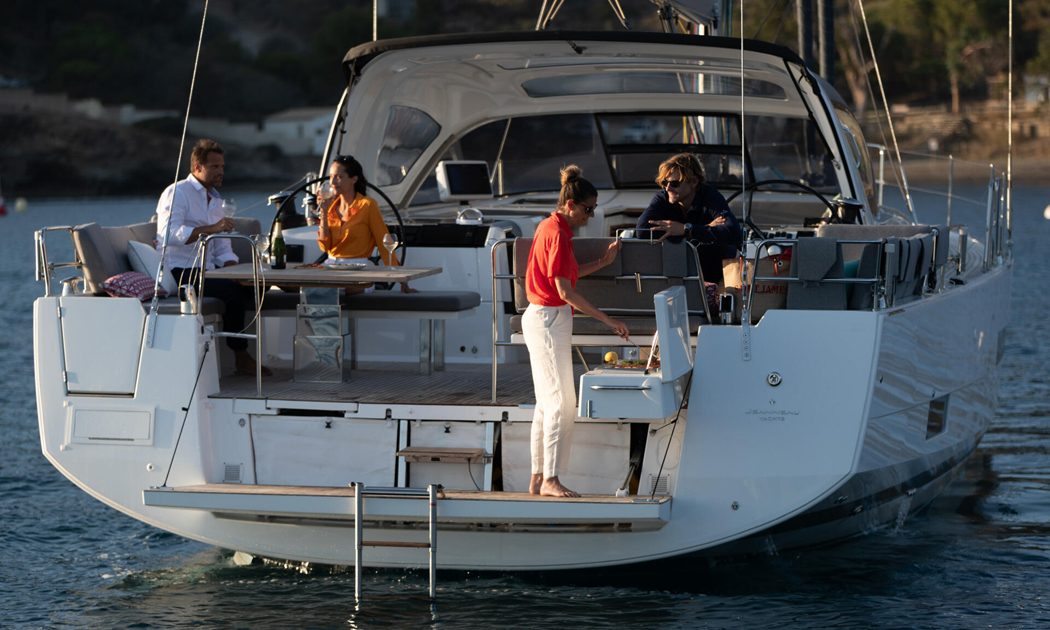

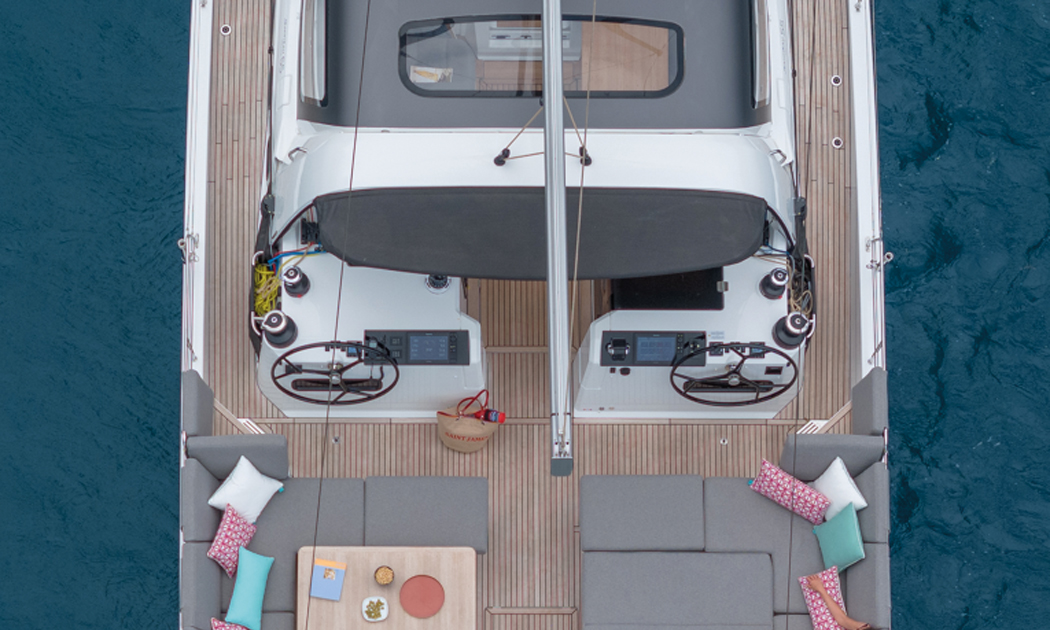

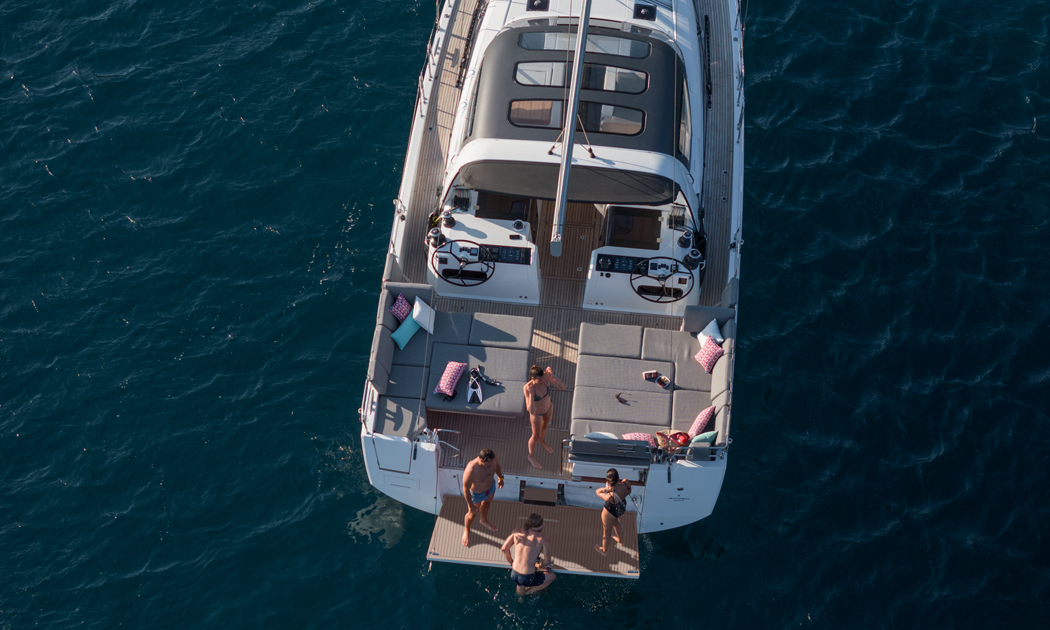

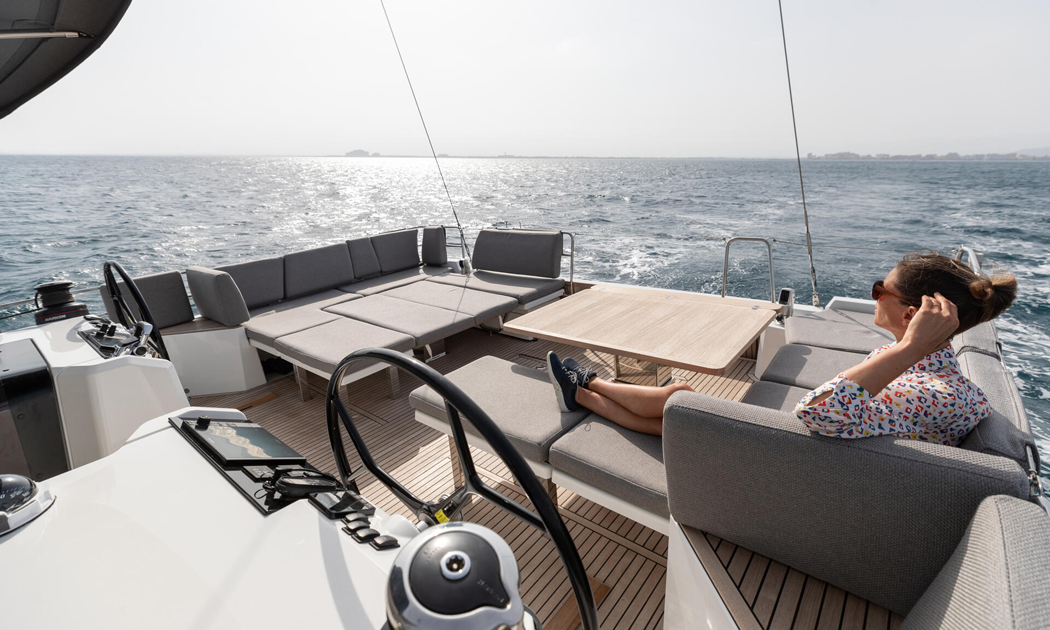

Cockpit
• Double leather-covered stainless steel steering wheels
• 2 backstay chainplates
• Large wood aft fold-down swim platform
• Mechanised lifting of the swim platform
• Stainless steel handrails
• 1 starboard cockpit table with 2 fixed legs
• Large U-shaped benches on starboard
• Large L-shaped benches on portside
• Large liferaft locker 90 x 55 x 35 cm (2’11’’ x 1’9’’ x 1’1’’)
• Gas locker on starboard with 1 big bottle or 3 little bottles
• Wood inlay on bench seats, steps, cockpit floor and transom platform
• 220 V shore power socket
• USB plugs, at the steering wheels
• Halyards bags (2)
• Water intake in the cockpit
• Garage access (2,10 x 1,50x 0,35m / 6’10’’ x 4’1’’ x 1’1’’)

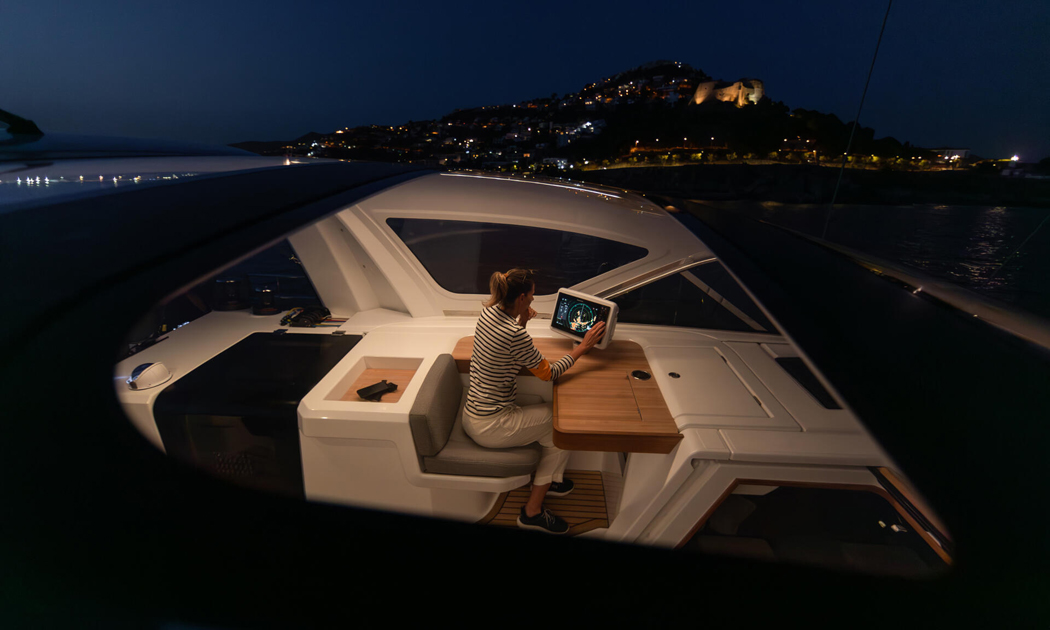

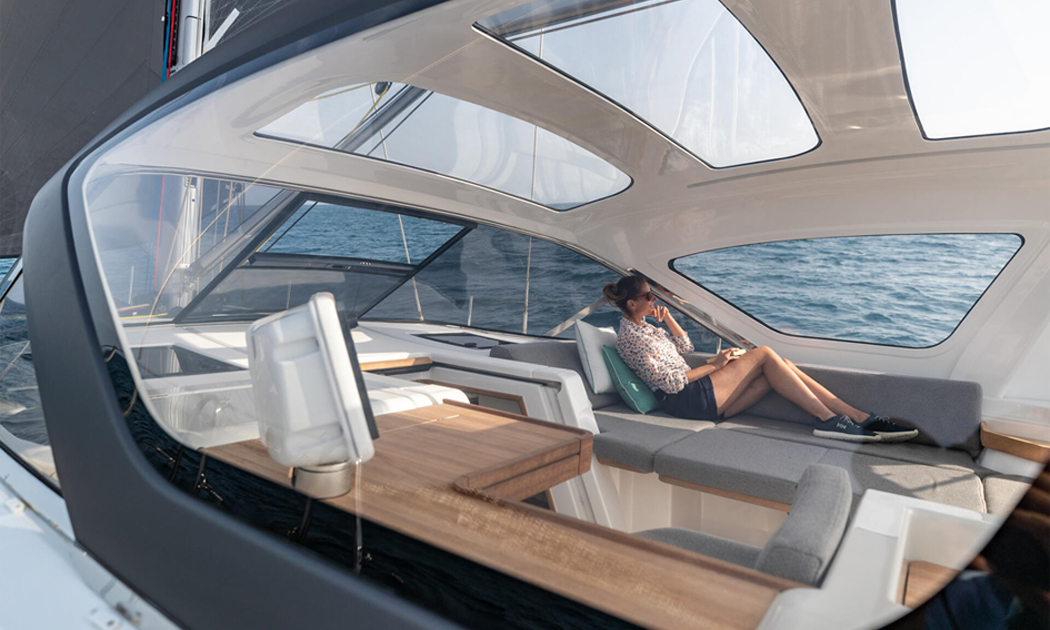

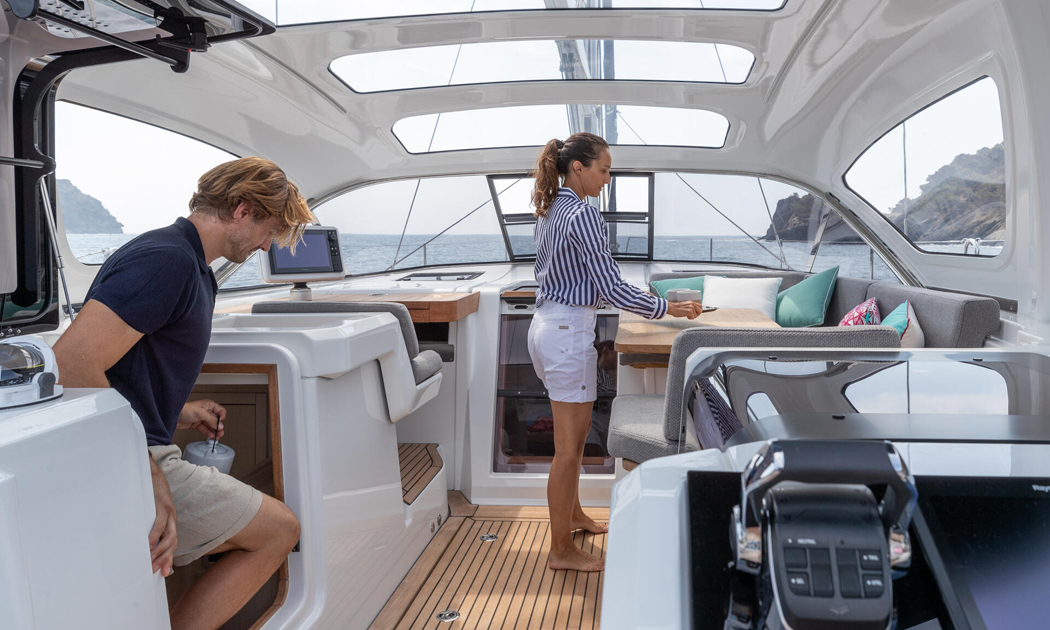

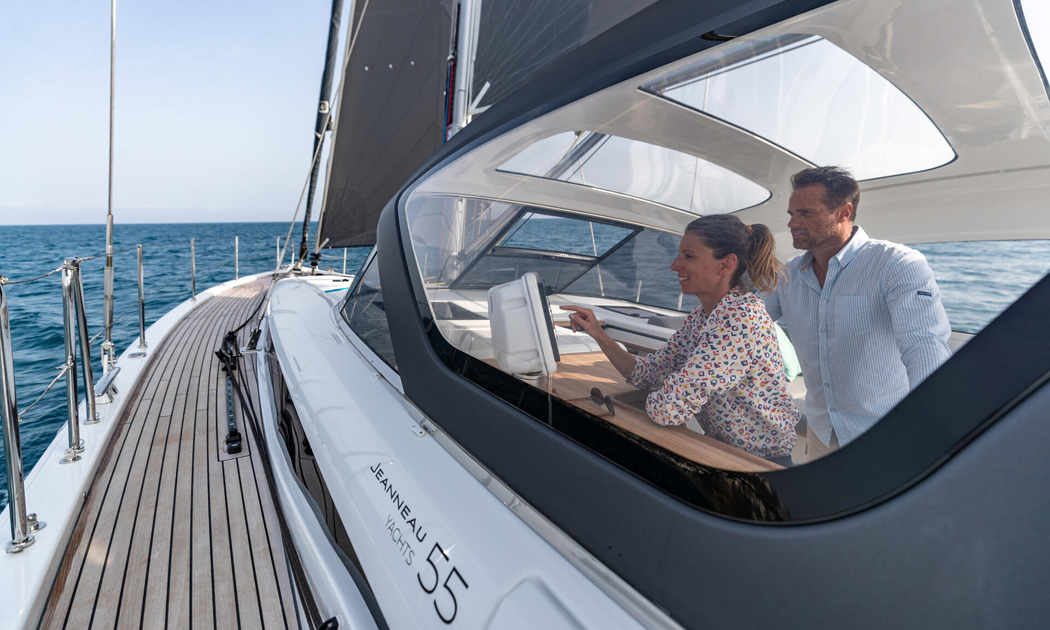

Protected cockpit
• Chart table on portside
• Saloon with 1 table for 3 people on starboard
• Storage pockets
• Drop-down companionway hatch
• Access doors for aft cabins
Sail locker forward
• Access through lockable deck hatch
• Access ladder
• Storages
• Access to bow thruster and technical areas
• LED lighting

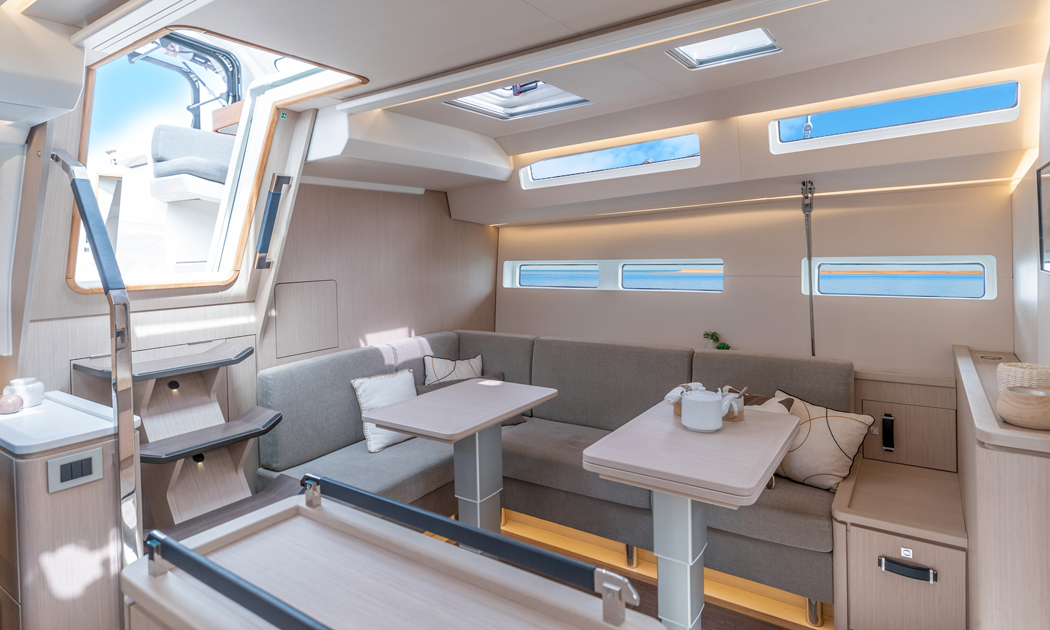

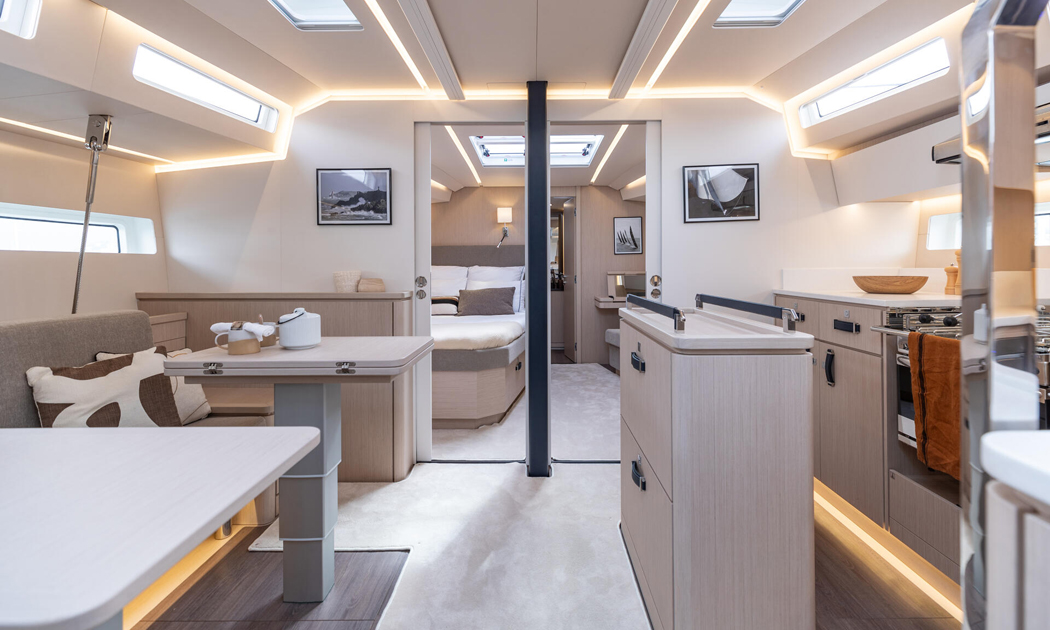

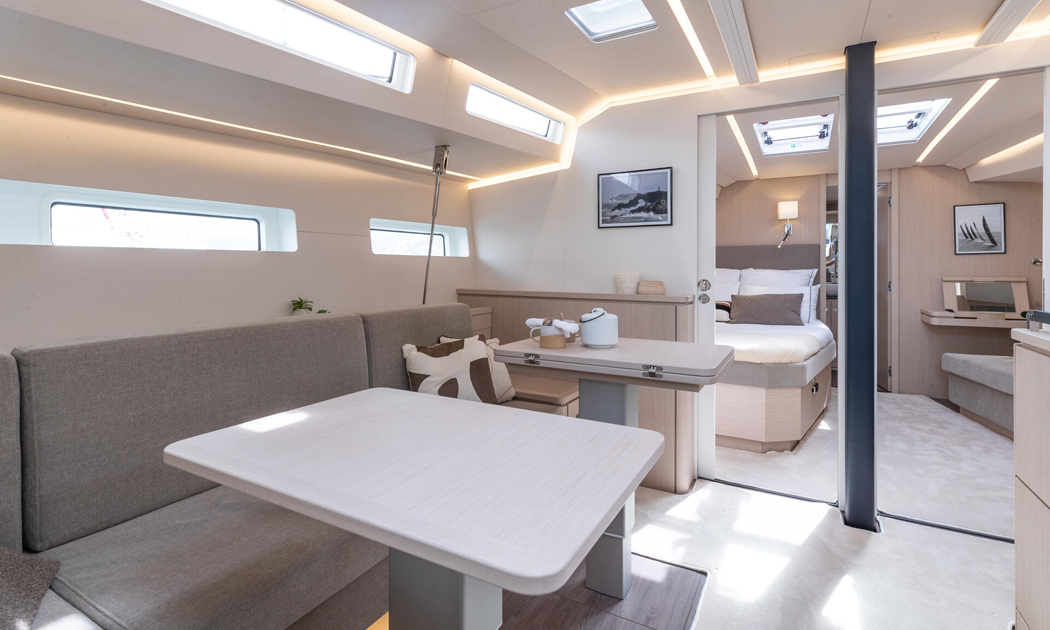

Saloon / lounge
• L-shaped seating area on port side
• Fixe saloon tables (2)
• Access to the electrical panel on port side
• J-shaped galley on starboard
• Fixed hull port (6)
• Flush opening hatches (4)
• Central kitchen island
• Stainless steel sink
• Chrome-plated mixing tap
• Waste bin 15 L / 4 US gal (2)
• 3-burners stove cooker
• 144 L / 20 US gal combination fridge
• Corian countertop
Forward cabin

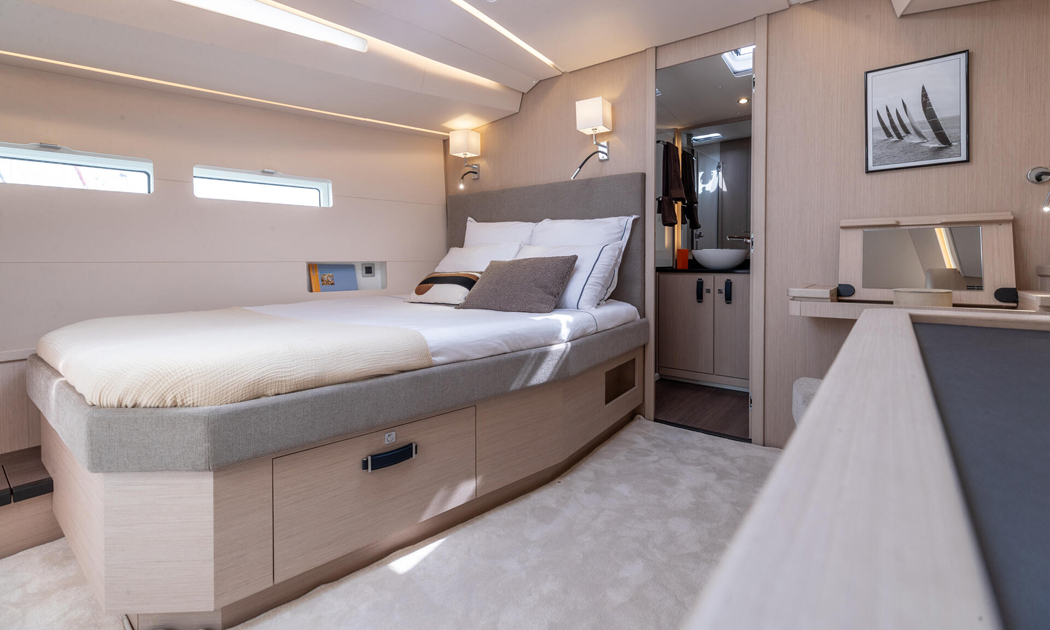

Owner’s stateroom
• Double berth (1,60/1,23 x 2,05 m / 5’2’’/4’0’’ x 6’8’’)
• Sofa
• Double hanging locker with drawers (3)
• Under-sofa storage drawers (2)
• Under-bed storages (2)
• AC and USB plugs
• LED reading lights and lighting
• Fixed hull ports with aviation shades (3)
• 2 opening portholes

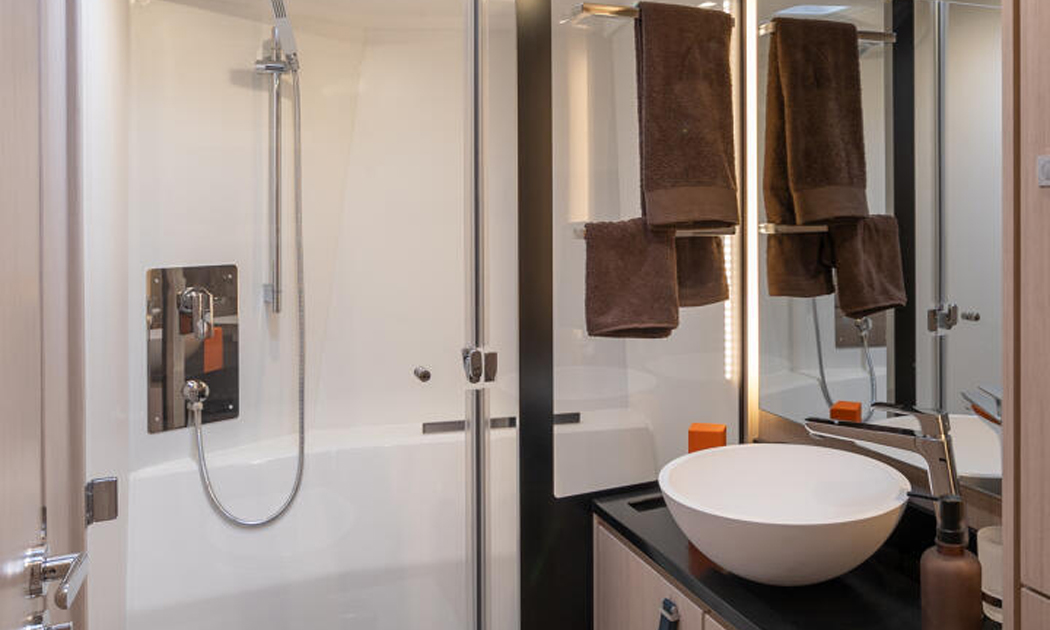

• En-suite head compartment with opening porthole

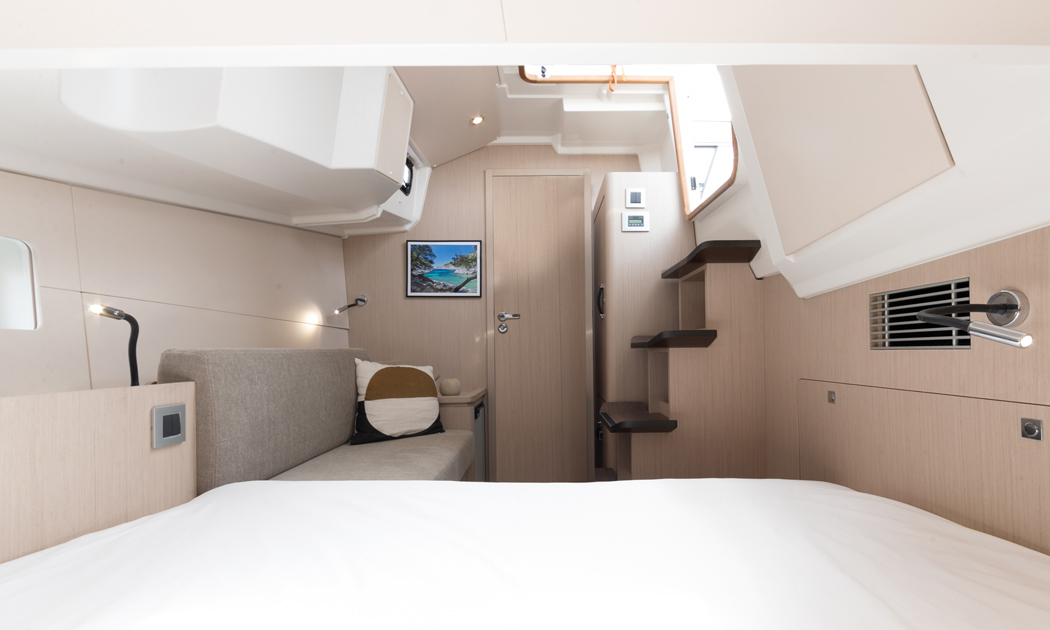

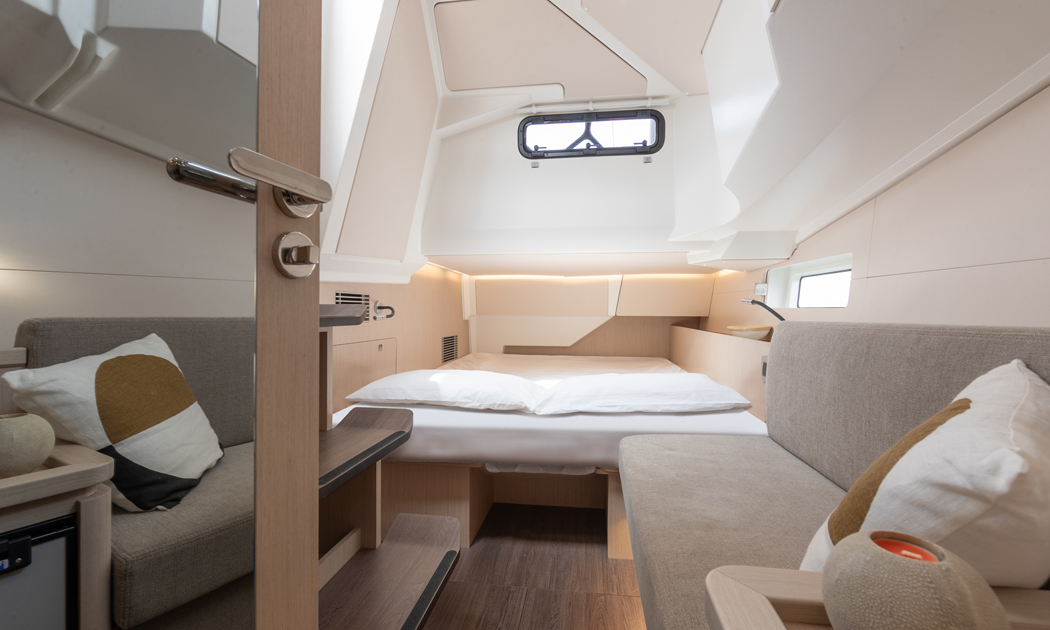

Aft cabins
Portside VIP cabin
• Double berth (2,00m x 1,55m / 6’6’’ x 5’1’’)
• Low cabinet 2 drawers
• Sofa
• Hanging locker
• Under-bed storage
• Lateral storage shelf
• AC and USB plugs
• LED reading lights and lighting
• Fixed hull port with aviation shade
• 2 opening portholes
• En-suite head compartment with opening porthole
Starboard guest cabin
• Double berth (2,00m x 1,55m / 6’6’’ x 5’1’’)
• Hanging locker
• Fixed hull ports with aviation shade
• 1 opening porthole
• Under-bed storage
• AC and USB plugs
• LED reading lights and lighting
• En-suite head compartment with opening porthole

Electric
• Main electric panel backlit
• Switches for domestic systems
• USB plug
• LCD displays: DC Voltage level, amperage consumption meter, fuel
and water gauges, Navicolor screen 3.5’’
• Induction phone charging station
• House AGM battery bank 12V (6 x 95 = 570 Ah)
• Engine AGM battery 12 V (1 x 50 Ah / 12 V)
• Battery charger 12 V (40 Ah)
• Battery chargers 24V for thrusters and windlass
• Engine alternator 12 V / 125 Ah
• Inverter
• Battery switches: under the companionway
• AC 230 V plugs in saloon, galley and each cabin
• Dimmable LED lightings
• Ship Control
• SEANAPPS connected technology: allows you to monitor the condition
of the boat and receive alerts and maintenance recommendations via
the associated mobile application. Depending on the boat’s
configuration, SEANAPPS collects safety indicators (GPS position,
battery status, bilge level, engine status), navigation data (distance
travelled, speed, depth), and comfort information (tank levels, cabin
temperature and humidity).
Motorization
• YANMAR ® Shaft Drive 110 HP – 81 kW
• Soundproof engine room
• Installation on hull counter-mould
• Folding propeller
• Roto-moulded exhaust box and stainless steel exhaust fitting on hull
• Extractor fan located in engine room
• Ventilation ducting vents on transom
• Roto-moulded fuel tank 230 L / 61 US gal
• Fuel / water separator
• Fuel gauge at electrical panel
• Tunnel bow thruster (on independent 24V battery park)
• Retractable stern thruster (on independent 24V battery park)
Plumbing
Fresh water
• Fresh water system with highpressure (36 L / min / 9,5 US gal / min), inline filter and accumulator tank
• Fresh water shore connection
• Rotomouled tank 2×380=760 L / 201 US gal
• Tank gauge integrated into display panel
• Tank manifold with selector valves
• 60 L / 16 US gal hot water heater
• Hot and cold cockpit shower
Waste waters
• Collector system at each head compartment
• Marine toilets in each cabins
• Roto moulded holding tank 64 L / 17 US gal located in each head
compartment
• Heavy duty white PCV hosing
Bilge drainage
• Manual bilge pump
• Manual bilge pump located in the cockpit
• Electric bilge pump located in the sump
• Electric bilge pump located in front
of the bow thruster
HEADROOM
• Master forward cabin 2,06 m / 6’9’’
• Companionway 1,99 m / 6’6’’
• Saloon 2,02 m / 6’7’’
• Galley 2,06 m / 6’9’’
• Forward owner’s head 1,92 m / 6’3’’
• Aft VIP’s head 1,98 m / 6’5’’
